BD1548
Zoom in image

FREMAX - BD1548

DISCO DE FREIO VENTILADO DIANTEIRO FREMAX - BD1548

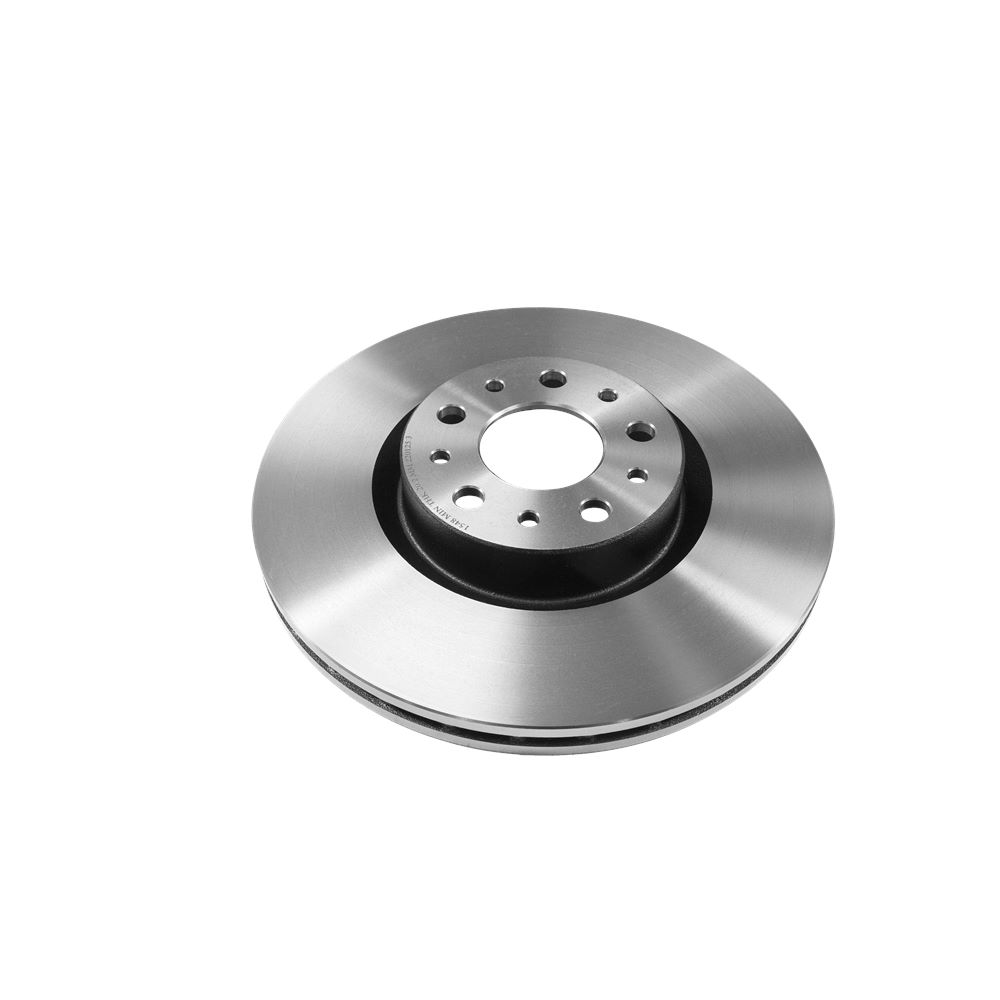

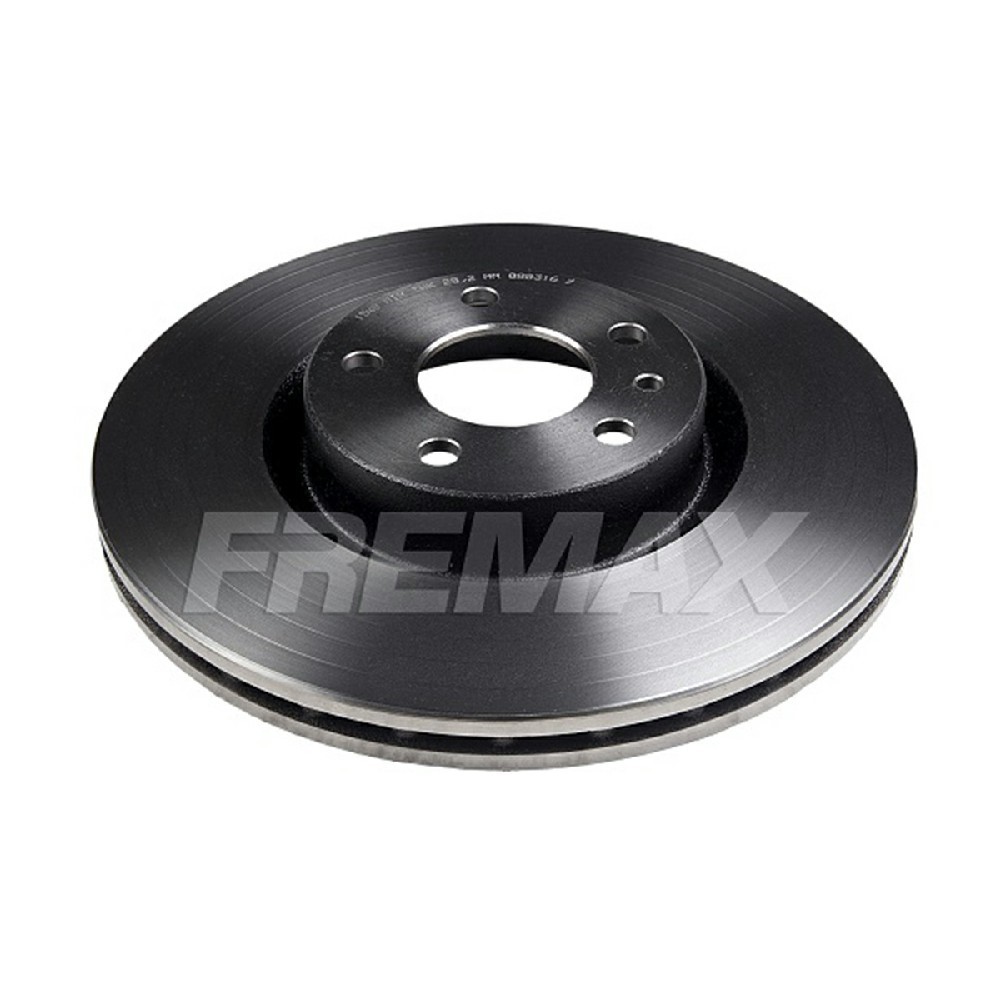

This product's image is merely illustrative. Product features are subject to change by the manufacturer without prior notice.
Marca da peça

FREMAX - BD1548

DISCO DE FREIO VENTILADO DIANTEIRO FREMAX - BD1548

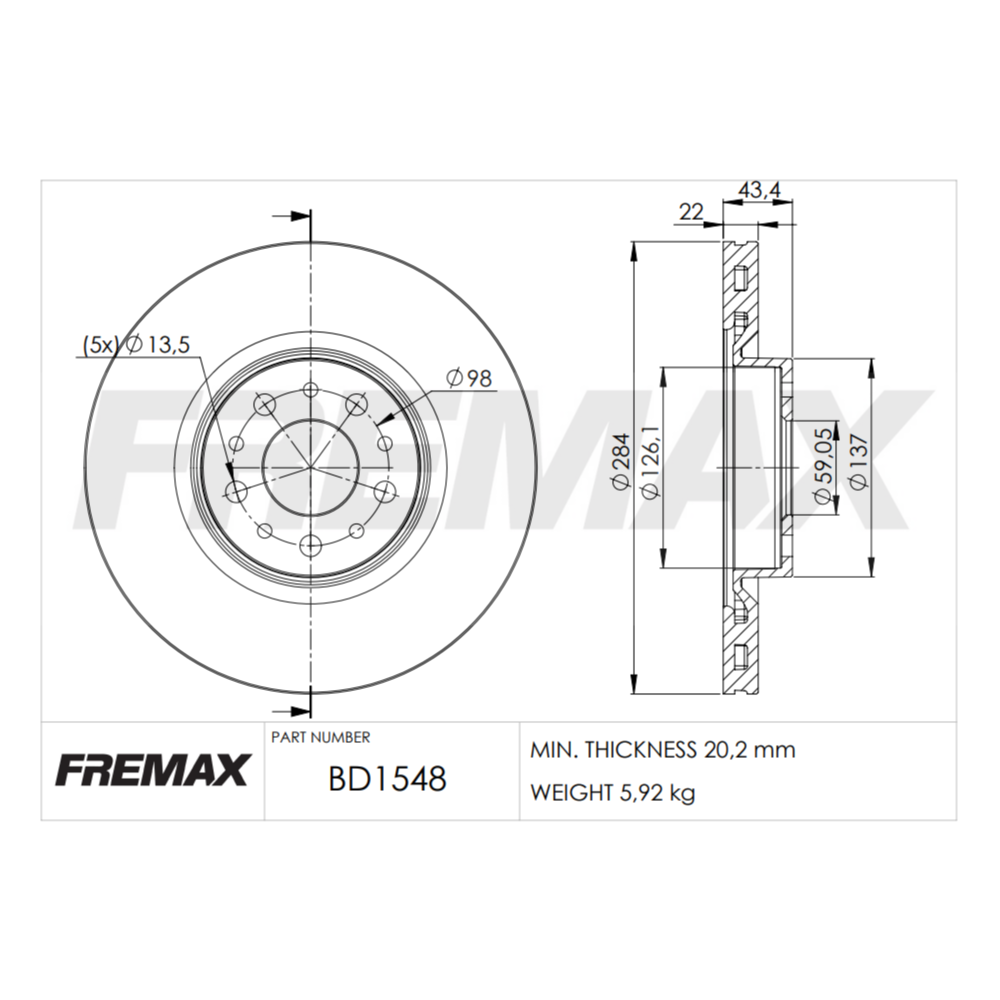

Technical specifications overview
Diâmetro do furo central
59,050 mm
Diâmetro externo
284,000 mm
Espessura
22,000 mm
Lado
Ambos
Modelo
Ventilado
Posição
Dianteiro
Quantidade de furos
5,000
Detailed Application
Technical specifications
Similar products
Videos
Where to Find
Warranty

Detailed Application

Assembler
Vehicle
Model
Motor
Engine Configuration
Only
Start
End
ALFA ROMEO156SPORTWAGONTWIN SPARK M202.0 L 16V DOHC L4Eixo Dianteiro20012001
ALFA ROMEO1643.0 I.EM63.0 L 12V SOHC V6Eixo Dianteiro19901991
ALFA ROMEO1643.0 V6 12VM53.0 L 12V SOHC V6Eixo Dianteiro19921997
ALFA ROMEO1562.0 JTS SPORTWAGONTWIN SPARK M102.0 L 16V DOHC L4Eixo Dianteiro20022003
ALFA ROMEO1643.0 V6 24VM73.0 L 24V DOHC V6Eixo Dianteiro19951996
ALFA ROMEOSPIDER3.0 V6 12V CABRIOLETM33.0 L 12V SOHC V6Eixo Dianteiro19961998
ALFA ROMEO1562.5 24VM152.5 L 24V DOHC V6Eixo Dianteiro20022004
ALFA ROMEO1562.5 24VM62.5 L 24V DOHC V6Eixo Dianteiro19982001
FIATFASTBACKTURBO 200 ATGSE T2001.0 L 12V SOHC L320232025
FIATFASTBACKIMPETUSGSE T2001.0 L 12V SOHC L320222025
FIATFASTBACKAUDACE HYBRIDGSE T2001.0 L 12V SOHC L320242025
FIATFASTBACKIMPETUS HYBRIDGSE T2001.0 L 12V SOHC L320242025
FIATFASTBACKAUDACEGSE T2001.0 L 12V SOHC L320222025

Unfortunately we couldn't find any detailed applications for this search. Try again with another term.

Technical specifications

Fiscal
Código de barras (EAN)
7893233015483
NCM
87083090
Logístico
Peso bruto
6,290 Kg
Peso líquido
5,920 Kg
Técnico
Altura total
43,400 mm
Composição
Peç
Diâmetro do furo central
59,050 mm
Diâmetro do furo de fixação
13,500 mm
Diâmetro externo
284,000 mm
Diâmetro posição dos furos
98,000 mm
Disco e tambor integrado
Nao
Disco Perfurado
Nao
Disco Slotado
Nao
Espessura
22,000 mm
Espessura mínima
20,200 mm
Inclui cubo
Sem cubo
Kit
Nao
Lado
Ambos
Modelo
Ventilado
Posição
Dianteiro
Quantidade de furos
5,000
Quantidade de furos guia
1,000
Sistema de ventilação
Interno
Tipo de Aleta
02

Similar products

Brand
Code
ALFA ROMEO ORIGINAL60801722
ALFA ROMEO ORIGINAL82450539
ALFA ROMEO ORIGINAL164102202300
ALFA ROMEO ORIGINAL82427592
ALFA ROMEO ORIGINAL60658565
ALFA ROMEO ORIGINAL60622077
ALFA ROMEO ORIGINAL60569163
ALFA ROMEO ORIGINAL71711447
ALFA ROMEO ORIGINAL60571548
ALFA ROMEO ORIGINAL60653478
ALFA ROMEO ORIGINAL46445006
BREMBO9493920
CENTRIC PARTS12002006
FIAT ORIGINAL52174411
FIAT ORIGINAL51937218
FIAT ORIGINAL51937217
FIAT ORIGINAL51885408
FIAT ORIGINAL51884303
HIPPER FREIOSHF49
HIPPER FREIOSHF42B
MDSD548
TEXTAR98200046801
TRWRCDI01780
ZIMMERMANN110220752
ZIMMERMANN110220720

Unfortunately we couldn't find any detailed applications for this search. Try again with another term.

Videos

Where to Find

Warranty

What is warranty for the factory?

Parts that have defects or manufacturing defects; are within the warranty terms* for manufacturing defects after the sale of the product to the final customer, proven through the invoice, and do not present any type of violation or damage caused by improper use.
*If you have doubts about how to proceed to request the warranty of a part, contact your distributor, he will be able to assist you.

What is not warranty for the factory?

Parts that show violation or damage caused by improper use are not considered as warranty for the factory.

Warranty request

The customer makes the complaint to the mechanic, who reports to the auto parts store. The store reports the problem to the distributor, who is responsible for issuing the warranty request to the factory, preparing the report, monitoring progress and providing feedback to everyone involved in the chain.

Imagem garantias

Distributor, to request a warranty, you need the purchase invoice for the product from the factory, invoice or sales coupon for the product to the end customer, good resolution photos and/or video of the product and a detailed explanation of what the problem is.

Access the portal to issue the request:
https://posvendas.empresasrandon.com.br/

If you don't have a login, contact our warranty team who will provide all the details for accessing and using the portal.

The average time for the entire warranty process, when THERE IS NO need for a physical analysis of the product, is approximately 15 days and, when there is, it is approximately 30 days.

For products from the brands Controil, Fras-le, Fremax, Lonaflex, and Nakata, warranty claims are handled through a technical visit by regional consultants. They will analyze the products, the purchase invoice, the sales invoice or receipt, and the reported issue to determine whether the warranty will be approved. If you have any questions or need more information, please contact our Customer Service at 0800 707 8022 or, if you prefer, via WhatsApp at +55 11 99990-3839, where our representatives will be available to assist you.
